Eurowindow TTK Alu Therm

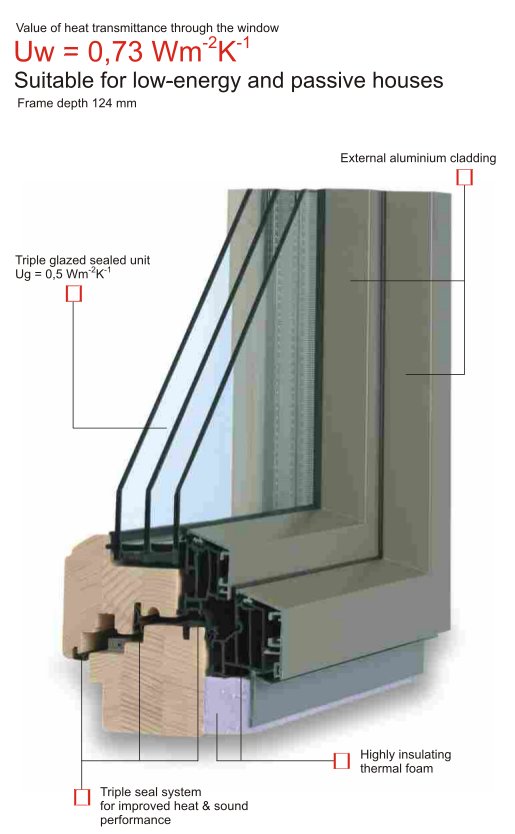

Luxurious model of a wooden window protected by aluminium shield from outside, with inner thermoinsulation layer
Top thermoinsulation properties
Suitable for low-energetic and passive houses

Used materials:

Three-layer glued lamella of wood species

spruce without any longitudinally joints (fixed)
pine without any longitudinally joints
meranti without any longitudinal joints
oak without any longitudinal joints

Surface treatment:

Ecological water thinned thick-layer glazing of the firm SIKKENS inclusive deep impregnation. Shades according to the pattern book TKK or to the standard RAL. Even two-colour combination or colourless transparent glazing is possible.

Fittings :

All-circumference application of MACO in the most modern workmanship Multi Trend, with two additional safety points, with wing lifting and wrong manipulation safety stop. Up to your wish with electronic control Maco Tronic.

Glass:

Thermal insulation double glazing with warm stainless distance frame. Thermal transmission coefficient Ug = 1,1 Wm-2K-1based on your wish up to 0,56 Wm-2K-1 Heat Mirror. MGlazing using ornamental glass, glass with increased safety parameters, glass with increased acoustic or sunshine protection level requirements is possible. Mounting of jalousies inside of double glass up to your wish.

Outside sheathing:

Overlapping aluminium profile MIRA or MIRA THERM with thermal insulation layer in wide palette of colour shades.
